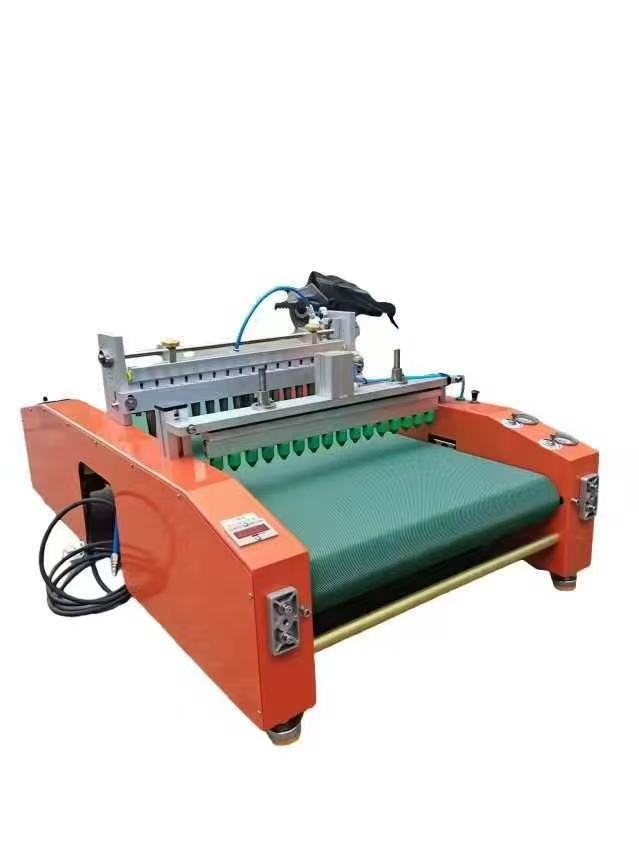

XP-600A Model

Operator Control:
The equipment features electrical integration with a one-button automatic start. The tray is simply placed on the conveyor belt for easy operation.

Core Structure:
The punching process uses a conical-head press to create holes in the tray, while sowing is performed using a traditional sowing tube. Both punching and sowing are completed by processing each row of holes along the long edge of the rectangular tray.

Motion Control:
The equipment uses photoelectric sensors for both hole punching and sowing detection. The conveyor belt controls the movement of the trays, ensuring continuous motion without interruption. The core control system is PLC-based, with adjustable air pressure, fast sowing speed, and precise positioning.

Air Pressure Control:
The equipment features stepless speed regulation, with excellent adaptability, and the maximum speed is 1.1 seconds per row. The XP-600A is a versatile and efficient machine designed for seed hole punching and sowing. It has dimensions of 2.15m in length, 0.84m in width, and 0.8m in height. With a power consumption of just 150W, it operates with an input voltage of 220V AC, 50Hz, and a safe control voltage of 24V DC. The machine features 6 input signals and 2 output signals, ensuring smooth operation and precise control.

The XP-600A is built with a high-quality stainless steel frame and a green conveyor belt, providing durability and reliability. It is powered by a stepless speed-regulating motor combined with stepless speed-regulating air pressure, offering excellent adaptability for various applications. The programming of the machine is developed using a Programmable Logic Controller (PLC), ensuring easy integration and flexibility in operation.

This machine is compatible with standard trays with 21, 32, 50, 72, 98, 105, 128, 200, and 288 holes. Non-standard trays can also be customized to meet specific customer needs.

The XP-600A is widely used in a variety of agricultural sectors, including vegetables like chili, cabbage, tomatoes, lettuce, and rootstocks. It is also suitable for flowers such as petunia, dianthus, celosia, and chrysanthemums. Additionally, it can be used for tobacco and medicinal herbs, making it a highly adaptable tool for diverse planting needs.

This product offers an efficient, easy-to-operate solution with high precision for planting and sowing in agricultural applications. Product Description – XP-600A Automatic Seeding Machine

The XP-600A is a fully automated and high-precision seeding machine, designed to improve planting efficiency across various agricultural applications.

Featuring a compact yet robust design with overall dimensions of 2.15 meters in length, 0.84 meters in width, and 0.8 meters in height, the machine operates at a low power consumption of just 150W. It is powered by an input voltage of 220V AC, 50Hz, and uses a safe 24V DC control voltage, ensuring operator safety and stable performance.

Built with a high-grade stainless steel frame and a durable green conveyor belt, the XP-600A combines a stepless speed-regulating motor with stepless pneumatic pressure adjustment, allowing it to adapt seamlessly to different seed types and production requirements.

Controlled by a Programmable Logic Controller (PLC), the XP-600A achieves precise operation with 6 input signals and 2 output signals to coordinate complex movements. It supports standard seedling trays including 21, 32, 50, 72, 98, 105, 128, 200, and 288 holes, and can be customized to accommodate non-standard trays upon request.

Application range:

Vegetables: chili peppers, cabbage, tomatoes, lettuce, rootstocks, etc.

Flowers: petunias, dianthus, celosia, chrysanthemums, etc.

Tobacco and medicinal herbs

With its combination of energy efficiency, intelligent control, and adaptability, the XP-600A is an ideal solution for modern agricultural production, helping users improve productivity, reduce labor intensity, and achieve consistent planting quality.
